Bearing Induction Heater

Product Features:

• Applying to electromagnetic induction heating mode, so that the work-piece is heated directly, heating more evenly;
• Has constant temperature and timing two heating methods, with automatic heat preservation, manual/automatic demagnetizationcharacteristic and so on, safe, convenient and quick operation;
• Generally used in the maintenance workshop and production field;
• Be customized as per the requirement of customer.

KET-RMD-240	KET-RMD-400

KET-RMD-600	KET-RMD-800

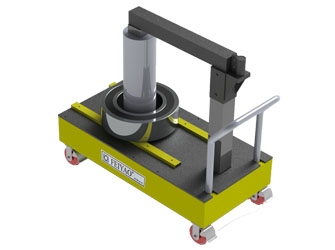

KET-RMD-240 model:

• Rotary heating rod, movable, microcomputer control;
• Easy to move, mainly used for heating the non-standard work piece which is quite width and large inner diameter;
• The heating work piece width up to 600mm.

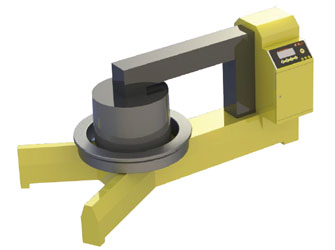

KET-RMD-400 model:

• Electric moving heating rod, turbine propulsion type, microcomputer control;
• Mainly used for the heating of the outer wheel of EMU and high-speed rail, bearing cover, wind power bearing seat and so on;
• The heating work piece width up to 500mm.

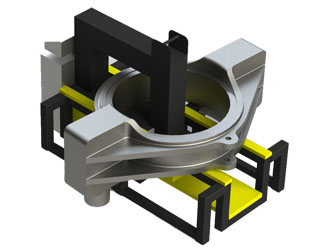

KET-RMD-600 model:

• Mainly used for the heating bearing cover, wind power bearing seat and so on;
• The width of heating work piece is up to 400mm.

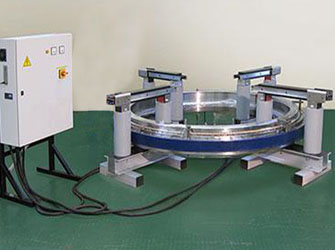

KET-RMD-800 model:

• Two points temperature control, internal and external circles to be heated at same time;
• Mainly used for heating the PMSG main bearing (combined), pipe welding preheating;
• The diameter range of heating bearing is 1000-3000mm, heat and detect inner and outer circle temperature, evenly heated and expanded
